VACUUM GRIPPER PANEL SYSTEM DS550 CA

In stock

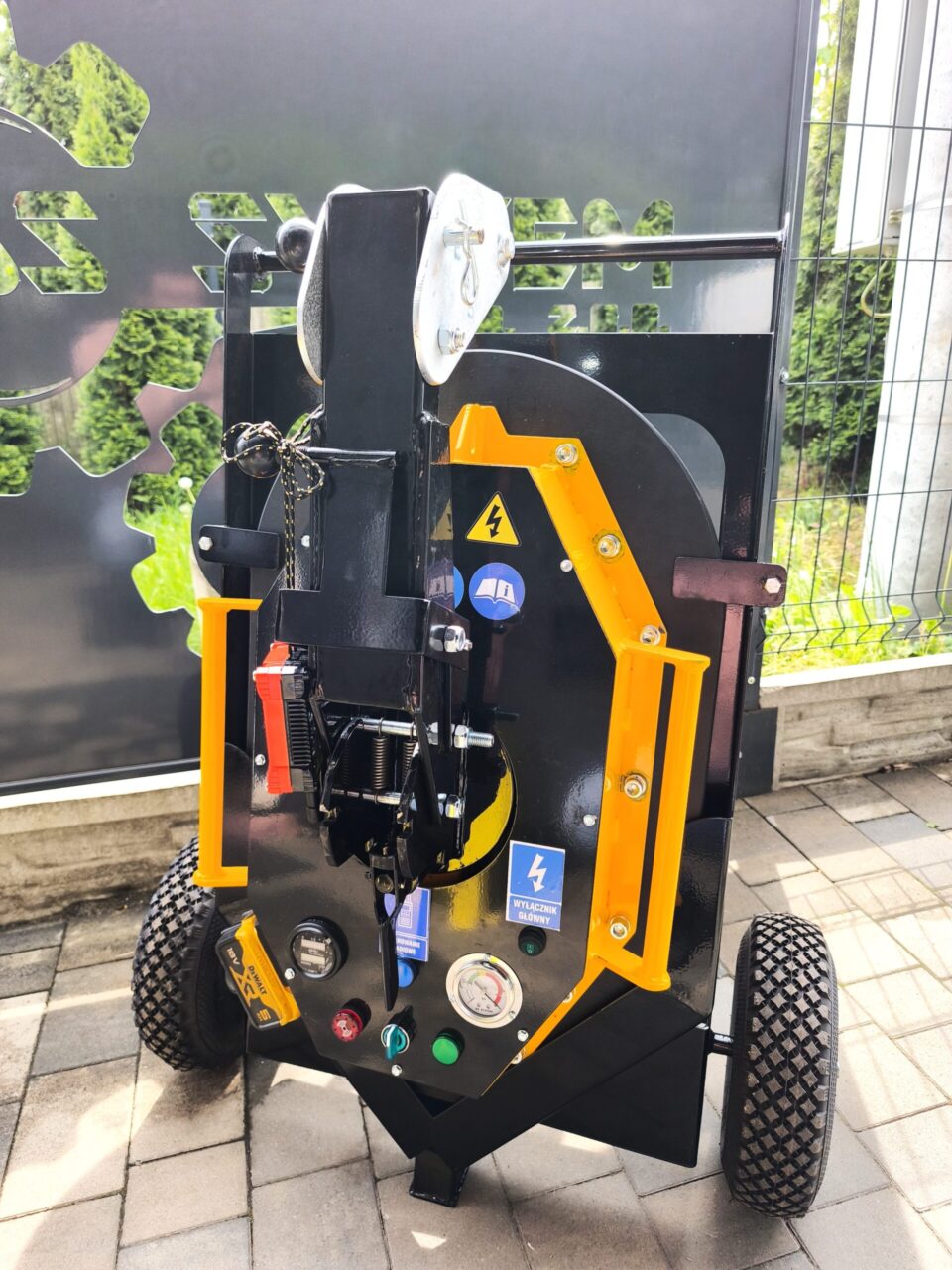

The DS550 CA system vacuum panel gripper is a compact device ideal for assembling sandwich panels. It works great both on large construction sites and for smaller investments. Its small dimensions make it easy to transport, even in the trunk of a passenger car.

In addition, the gripper is equipped with a turntable. This allows the hob to rotate 360°, which makes precise installation much easier. The device is available in a version with radio and manual control. You can choose a model with one or two vacuum circuits, so you can easily adjust the equipment to your needs.

What’s more, the DS550 CA system vacuum gripper provides safety and comfort for operation. The robust design guarantees a long life of the device, even with intensive use.

DEVICE

DS550 C
control unit + oval suction cup

DS550 MINI

DS550

DS550 MAX

LIABILITY

400 KG

350 KG

600 KG

1000 KG

CONTROL

radio or manual

radio or manual

radio or manual

radio or manual

TWO-CIRCUIT SYSTEM POSSIBLE

radio control manual control
radio control manual control
radio control manual control
radio control manual control

OPERATING MODE

horizontal

horizontal

horizontal

horizontal

SUPPLY

rechargeable (up to 12 hours of operation)

rechargeable (up to 12 hours of operation)

rechargeable (up to 12 hours of operation)

rechargeable (up to 12 hours of operation)

BATTERY CHARGE INDICATOR

MOUNTING POSITION

vertical / horizontal

vertical / horizontal

vertical / horizontal

vertical / horizontal

VERTICAL WALL ASSEMBLY

NUMBER OF SUCTION CUPS

1

4

8

12

NUMBER OF ARMS

---

2

4

6

MATERIAL DIMENSIONS

1-14 m

1-8 m

1-16 m

1-20 m

DEVICE WEIGHT

60 KG

90 KG

100 KG

110 KG
